Anti - Corrosion Strain Gauge Load Cell For Electronic Scale 50kg / 100kg / 200kg

Name: Anti Corrosion Strain Gauge Load Cell For Electronic Scale 50kg 100kg 200kg
Brand: ruijia
Price: 5 USD

Buy cheap Anti - Corrosion Strain Gauge Load Cell For Electronic Scale 50kg / 100kg / 200kg product

Brand Name : ruijia

Model Number : RJ-6540

Place of Origin : china

MOQ : 1pc

Price : USD5-10

Payment Terms : L/C, T/T, Western Union,

Supply Ability : 10000 Piece/Pieces per Month

Delivery Time : Within 2-4 Weeks

Packaging Details : Standard export packaging

Theory : Resistance Sensor

Capacity : 50-200kg

Comprehensive error : ±0.03

Safe overload (%F.S) : 120

Ultimate overload (%F.S) : 150

Excitation voltage (V) : 9-12(DC)

Application : electronic scale and other weighing equipment

Material : Aluminum Alloy

Contact Now

100kg High Accuracy Single Point Load Cell C3 Electronic Platform Scale sensors

Features:

1. Material: Aluminum Alloy

2. Silicone rubber seal, surface oxidation treatment, good anti - corrosion performance.

3. Applicable to electronic platform scales, electronic counting scales and weighing systems, with a resolution of 15,000 degrees.

Specification:

Rated capacity	30,50,60,80,100,150,200,300(kg)
Accuracy class	C3
Comprehensive error	0.02%FS
Sensitivity	2.0±0.1mV/V
Zero balance	2%FS
Input resistance	410±10Ω
Output resistance	350±2Ω
Insulation resistance	≥3GΩ
Use temp.range	-20 - +60℃
Excitation voltage	15V(AC/DC)
Safe overload	120%FS
Ultimate overload	150%FS
Ingress protection	IP65

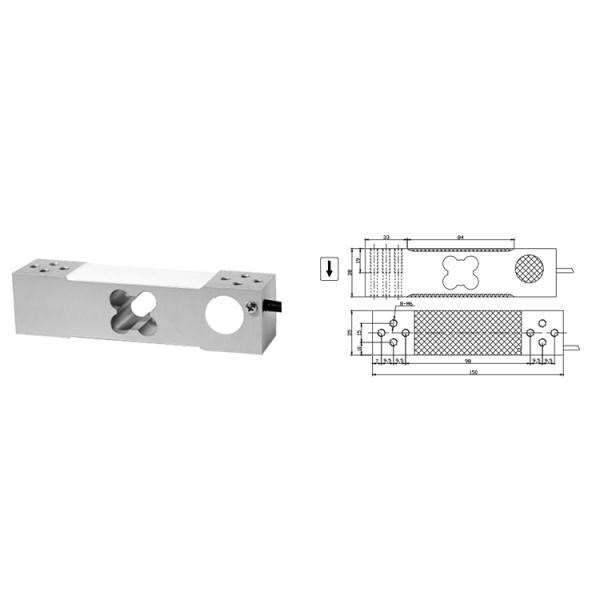

Dimension

Anti - Corrosion Strain Gauge Load Cell For Electronic Scale 50kg / 100kg / 200kg

Process flowchart

FAQ

1. What terms of payment are available?

We accept T/T, L/C, Western Union, , etc.

2. When will you arrange the production?

We will arrange the production immediately after receiving your payment.

3. How do you ensure good product quality?

We have a complete quality control system, all of our products are fully checked by IQC, OQC departments before shipping to our clients.
